Corn Header Auger Chain – Pitch 30.00 mm (Mt-01)
Zimaş
Translated automatically from Turkish.
Wholesale price and minimum order are shown to buyer accounts only.
SupplierTopbaş GroupBursa · Verified companySee wholesale price, request a sampleDocuments and minimum order are also shown in a buyer account. Free for buyers.
Description

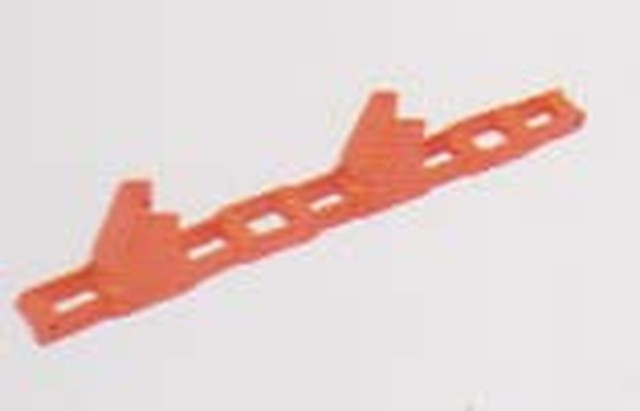

Sprocket chain for corn harvester headers; available in 8 types with different sprocket angles and heights. Standard: Non-standard (factory standard). 2 different sizes; pitch (p) 30 – 38.4 mm; breaking load 35,000 – 40,000 N. All dimensions listed in the dimension table below; technical drawings in product images. Zimaş codes: Mt-01-01-30, Mt-01-02-38,40.
Product details
- Origin
- TR
Size table

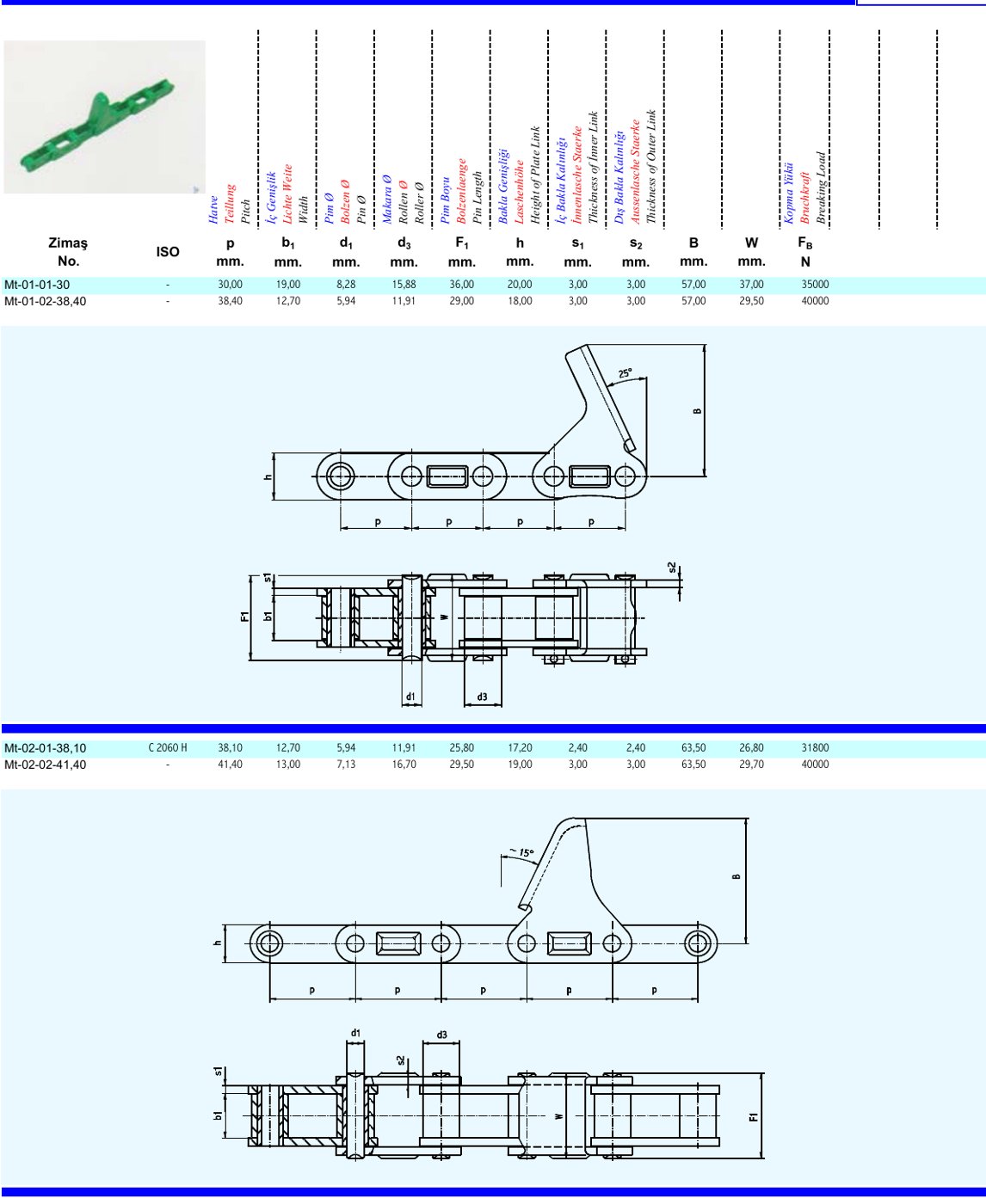

Symbols refer to the technical drawing in the product images.
| Zimaş kodu | Hatve (p)mm | İç Genişlik (b1)mm | Pim Ø (d1)mm | Makara Ø (d3)mm | Pim Boyu (F1)mm | Bakla Genişliği (h)mm | İç Bakla Kalınlığı (s1)mm | Dış Bakla Kalınlığı (s2)mm | Bmm | Wmm | Kopma Yükü (FB)N |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mt-01-01-30 | 30,00 | 19,00 | 8,28 | 15,88 | 36,00 | 20,00 | 3,00 | 3,00 | 57,00 | 37,00 | 35000 |
| Mt-01-02-38,40 | 38,40 | 12,70 | 5,94 | 11,91 | 29,00 | 18,00 | 3,00 | 3,00 | 57,00 | 29,50 | 40000 |
