Description
Single-row roller chain for power transmission and conveying applications. Standard: DIN 8187 / ISO 606 (European B series). 16 sizes available; pitch (p) 9.525 – 114.3 mm; breaking load 8,200 – 1,400,000 N. All dimensions listed in the dimension table below; technical drawings included in product images. Zimaş codes: Mz-01-01-9.525, Mz-01-02-12.70, Mz-01-03-12.70, Mz-01-04-12.70, Mz-01-05-15.875, Mz-01-06-19.05, Mz-01-07-25.40, Mz-01-08-31.75, Mz-01-09-38.10, Mz-01-10-44.45, Mz-01-11-50.80, Mz-01-12-63.50, Mz-01-13-76.20, Mz-01-14-88.90, Mz-01-15-101.60, Mz-01-16-114.30.
Product details
- Origin
- TR
Size table

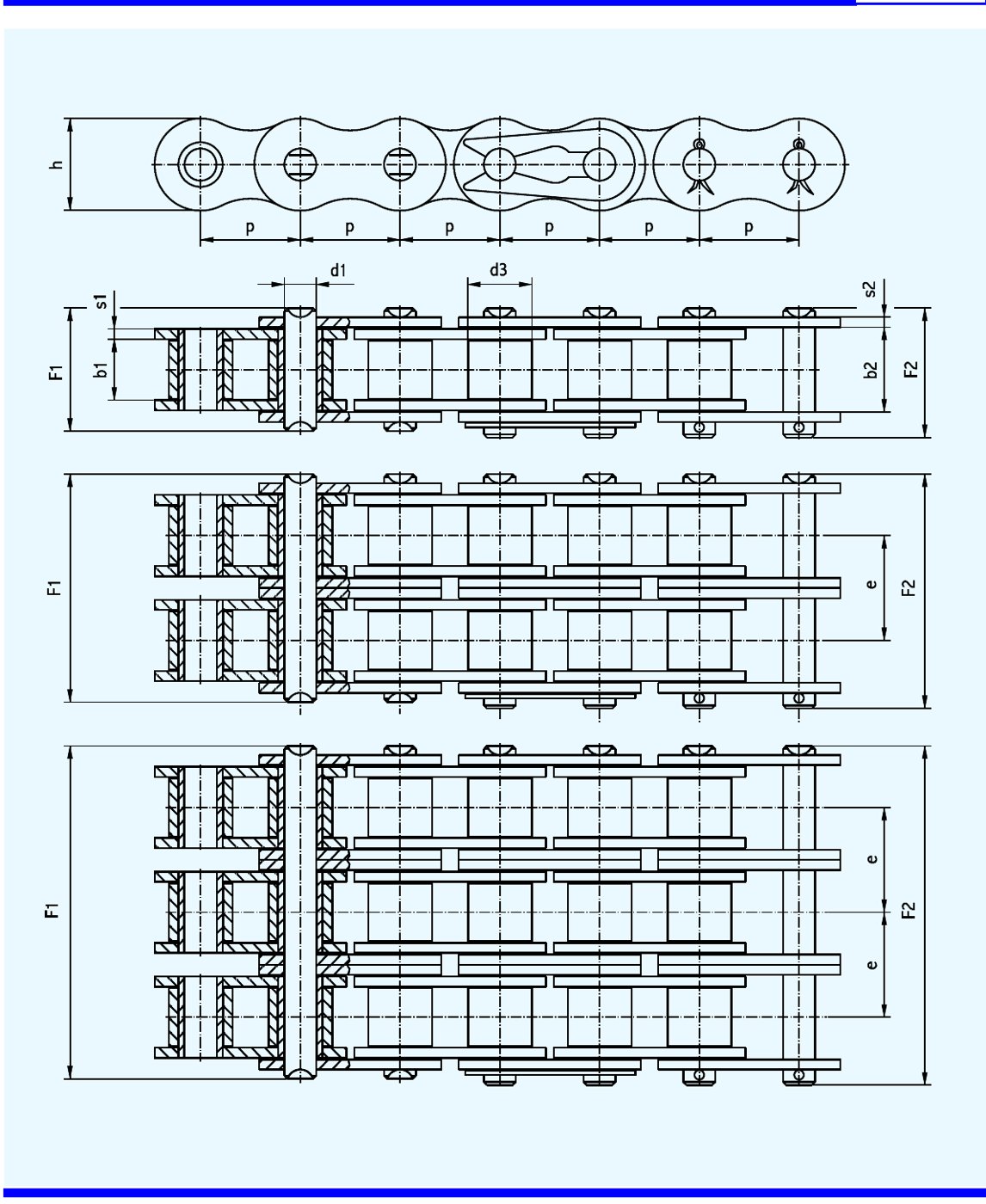

Symbols refer to the technical drawing in the product images.
| Zimaş kodu | Norm no. | Hatve (p)mm | İç Genişlik (b1)mm | Çatal İç Genişliği (b2)mm | Pim Ø (d1)mm | Makara Ø (d3)mm | Pim Boyu (F1)mm | Kilit Pim Boyu (F2)mm | Bakla Genişliği (h)mm | İç Bakla Kalınlığı (s1)mm | Dış Bakla Kalınlığı (s2)mm | Çapraz Hatve (e)mm | Mafsal Yüzey Alanı (f)cm² | Kopma Yükü (FB)N | Zincir Ağırlığı (q)kg/m |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Mz-01-01-9,525 | 06 B1 | 9,525 | 5,72 | 8,85 | 3,30 | 6,35 | 13,00 | 14,50 | 8,20 | 1,30 | 1,30 | - | 0,28 | 9000 | 0,41 |
| Mz-01-02-12,70 | 081-1 | 12,70 | 3,30 | 5,80 | 3,64 | 7,75 | 9,60 | 11,50 | 9,88 | 1,00 | 1,00 | - | 0,21 | 8200 | 0,28 |
| Mz-01-03-12,70 | 084-1 | 12,70 | 4,88 | 8,00 | 3,92 | 7,75 | 12,60 | 13,60 | 10,50 | 1,30 | 1,30 | - | 0,36 | 16000 | 0,59 |
| Mz-01-04-12,70 | 08 B1 | 12,70 | 7,75 | 11,50 | 4,45 | 8,51 | 17,00 | 18,00 | 11,80 | 1,60 | 1,60 | - | 0,50 | 18000 | 0,7 |
| Mz-01-05-15,875 | 10 B1 | 15,875 | 9,65 | 13,40 | 5,08 | 10,16 | 19,50 | 20,50 | 14,60 | 1,60 | 1,60 | - | 0,67 | 22400 | 0,95 |
| Mz-01-06-19,05 | 12 B1 | 19,05 | 11,68 | 15,60 | 5,72 | 12,07 | 22,40 | 24,00 | 16,00 | 1,70 | 1,70 | - | 0,89 | 29000 | 1,25 |
| Mz-01-07-25,40 | 16 B1 | 25,40 | 17,02 | 25,50 | 8,28 | 15,88 | 36,00 | 37,50 | 21,30 | 4,00 | 3,00 | - | 2,10 | 60000 | 2,7 |
| Mz-01-08-31,75 | 20 B1 | 31,75 | 19,56 | 28,50 | 10,17 | 19,05 | 41,50 | 45,00 | 25,50 | 4,00 | 4,00 | - | 2,96 | 95000 | 3,6 |
| Mz-01-09-38,10 | 24 B1 | 38,10 | 25,40 | 37,40 | 14,63 | 25,40 | 54,00 | 58,00 | 33,00 | 5,50 | 5,50 | - | 5,54 | 160000 | 6,7 |
| Mz-01-10-44,45 | 28 B1 | 44,45 | 30,99 | 47,00 | 15,87 | 27,94 | 65,50 | 71,00 | 37,00 | 7,50 | 6,00 | - | 7,39 | 200000 | 8,3 |
| Mz-01-11-50,80 | 32 B1 | 50,80 | 30,99 | 46,00 | 17,75 | 29,21 | 66,00 | 70,00 | 42,20 | 7,00 | 6,00 | - | 8,10 | 250000 | 10,5 |
| Mz-01-12-63,50 | 40 B1 | 63,50 | 38,10 | 55,60 | 22,87 | 39,37 | 81,00 | 86,00 | 52,50 | 8,00 | 8,00 | - | 12,75 | 355000 | 16 |
| Mz-01-13-76,20 | 48 B1 | 76,20 | 45,72 | 71,00 | 29,24 | 48,26 | 99,10 | 109,10 | 65,00 | 12,00 | 10,00 | - | 20,61 | 560000 | 25 |
| Mz-01-14-88,90 | 56 B1 | 88,90 | 53,34 | 81,30 | 34,32 | 53,98 | 118,00 | 125,00 | 76,00 | 13,00 | 13,00 | - | 27,90 | 850000 | 35 |
| Mz-01-15-101,60 | 64 B1 | 101,60 | 60,96 | 91,50 | 39,40 | 63,50 | 130,00 | 140,50 | 90,00 | 14,00 | 13,00 | - | 36,25 | 1120000 | 60 |
| Mz-01-16-114,30 | 72 B1 | 114,30 | 68,58 | 101,60 | 44,50 | 72,39 | 147,10 | 157,60 | 100,00 | 15,00 | 15,00 | - | 46,19 | 1400000 | 80 |
