Roller Chain DIN 8187 – Double Strand (Duplex)
Zimaş
Translated automatically from Turkish.
Wholesale price and minimum order are shown to buyer accounts only.
SupplierTopbaş GroupBursa · Verified companySee wholesale price, request a sampleDocuments and minimum order are also shown in a buyer account. Free for buyers.
Description
Double-strand roller chain for drives requiring high power transmission. Standard: DIN 8187 / ISO 606 (European B series). 14 different sizes; pitch (p) 9.525 – 114.3 mm; breaking load 16,000 – 2,500,000 N. All sizes shown in the size table below; technical drawing in product images. Zimaş codes: Mz-02-01-9.525, Mz-02-02-12.70, Mz-02-03-15.875, Mz-02-04-19.05, Mz-02-05-25.40, Mz-02-06-31.75, Mz-02-07-38.10, Mz-02-08-44.45, Mz-02-09-50.80, Mz-02-10-63.50, Mz-02-11-76.20, Mz-02-12-88.90, Mz-02-13-101.60, Mz-02-14-114.30.
Product details
- Origin
- TR
Size table

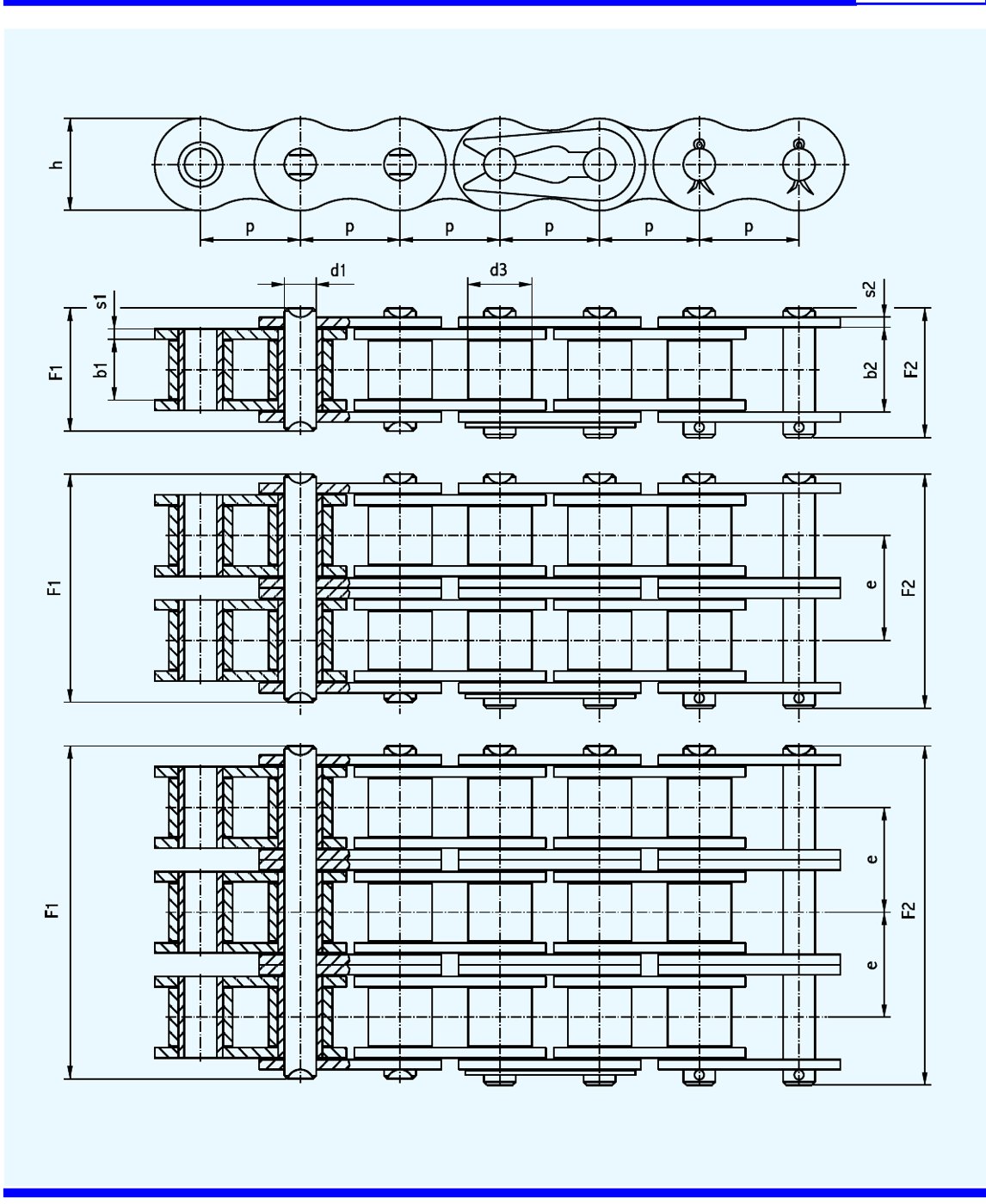

Symbols refer to the technical drawing in the product images.
| Zimaş kodu | Norm no. | Hatve (p)mm | İç Genişlik (b1)mm | Çatal İç Genişliği (b2)mm | Pim Ø (d1)mm | Makara Ø (d3)mm | Pim Boyu (F1)mm | Kilit Pim Boyu (F2)mm | Bakla Genişliği (h)mm | İç Bakla Kalınlığı (s1)mm | Dış Bakla Kalınlığı (s2)mm | Çapraz Hatve (e)mm | Mafsal Yüzey Alanı (f)cm² | Kopma Yükü (FB)N | Zincir Ağırlığı (q)kg/m |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Mz-02-01-9,525 | 06 B2 | 9,525 | 5,72 | - | 3,30 | 6,35 | 23,10 | 25,00 | 8,20 | 1,30 | 1,30 | 10,24 | 0,56 | 16000 | 0,78 |
| Mz-02-02-12,70 | 08 B2 | 12,70 | 7,75 | - | 4,45 | 8,51 | 31,00 | 32,00 | 11,80 | 1,60 | 1,60 | 13,92 | 1,01 | 32000 | 1,35 |
| Mz-02-03-15,875 | 10 B2 | 15,875 | 9,65 | - | 5,08 | 10,16 | 36,00 | 38,00 | 14,60 | 1,60 | 1,60 | 16,59 | 1,34 | 40000 | 1,35 |
| Mz-02-04-19,05 | 12 B2 | 19,05 | 11,68 | - | 5,72 | 12,07 | 42,00 | 43,50 | 16,00 | 1,70 | 1,70 | 19,46 | 1,79 | 53000 | 2,50 |
| Mz-02-05-25,40 | 16 B2 | 25,40 | 17,02 | - | 8,28 | 15,88 | 68,00 | 69,00 | 21,30 | 4,00 | 3,00 | 31,88 | 4,21 | 106000 | 5,40 |
| Mz-02-06-31,75 | 20 B2 | 31,75 | 19,56 | - | 10,17 | 19,05 | 77,10 | 81,00 | 25,50 | 4,00 | 4,00 | 36,45 | 5,91 | 170000 | 7,20 |
| Mz-02-07-38,10 | 24 B2 | 38,10 | 25,40 | - | 14,63 | 25,40 | 102,00 | 107,00 | 33,00 | 5,50 | 5,50 | 48,36 | 11,09 | 280000 | 13,50 |
| Mz-02-08-44,45 | 28 B2 | 44,45 | 30,99 | - | 15,87 | 27,94 | 124,00 | 132,00 | 37,00 | 7,50 | 6,00 | 59,56 | 14,79 | 360000 | 16,60 |
| Mz-02-09-50,80 | 32 B2 | 50,80 | 30,99 | - | 17,75 | 29,21 | 126,00 | 131,00 | 42,20 | 7,00 | 6,00 | 58,55 | 16,21 | 450000 | 21 |
| Mz-02-10-63,50 | 40 B2 | 63,50 | 38,10 | - | 22,87 | 39,37 | 154,00 | 159,00 | 52,50 | 8,00 | 8,00 | 72,29 | 25,50 | 630000 | 32 |
| Mz-02-11-76,20 | 48 B2 | 76,20 | 45,72 | - | 29,24 | 48,26 | 192,00 | 199,00 | 65,00 | 12,00 | 10,00 | 91,21 | 41,23 | 1000000 | 50 |
| Mz-02-12-88,90 | 56 B2 | 88,90 | 53,34 | - | 34,32 | 53,98 | 224,00 | 235,00 | 76,00 | 13,00 | 13,00 | 106,60 | 55,80 | 1600000 | 70 |
| Mz-02-13-101,60 | 64 B2 | 101,60 | 60,96 | - | 39,40 | 63,50 | 250,80 | 263,80 | 90,00 | 14,00 | 13,00 | 119,89 | 72,50 | 2000000 | 120 |
| Mz-02-14-114,30 | 72 B2 | 114,30 | 68,58 | - | 44,50 | 72,39 | 283,70 | 298,00 | 100,00 | 15,00 | 15,00 | 136,27 | 92,40 | 2500000 | 160 |
