Lugged Conveyor Chain DIN 8167
Zimaş
Translated automatically from Turkish.
Wholesale price and minimum order are shown to buyer accounts only.
SupplierTopbaş GroupBursa · Verified companySee wholesale price, request a sampleDocuments and minimum order are also shown in a buyer account. Free for buyers.
Description
Single-hole or bent lug (angle lug) M-series conveyor chain. Standard: DIN 8167. 51 different sizes; pitch (p) 40 – 500 mm. All sizes are listed in the size table below; technical drawings are shown in the product images.
Product details
- Origin
- TR
Size table

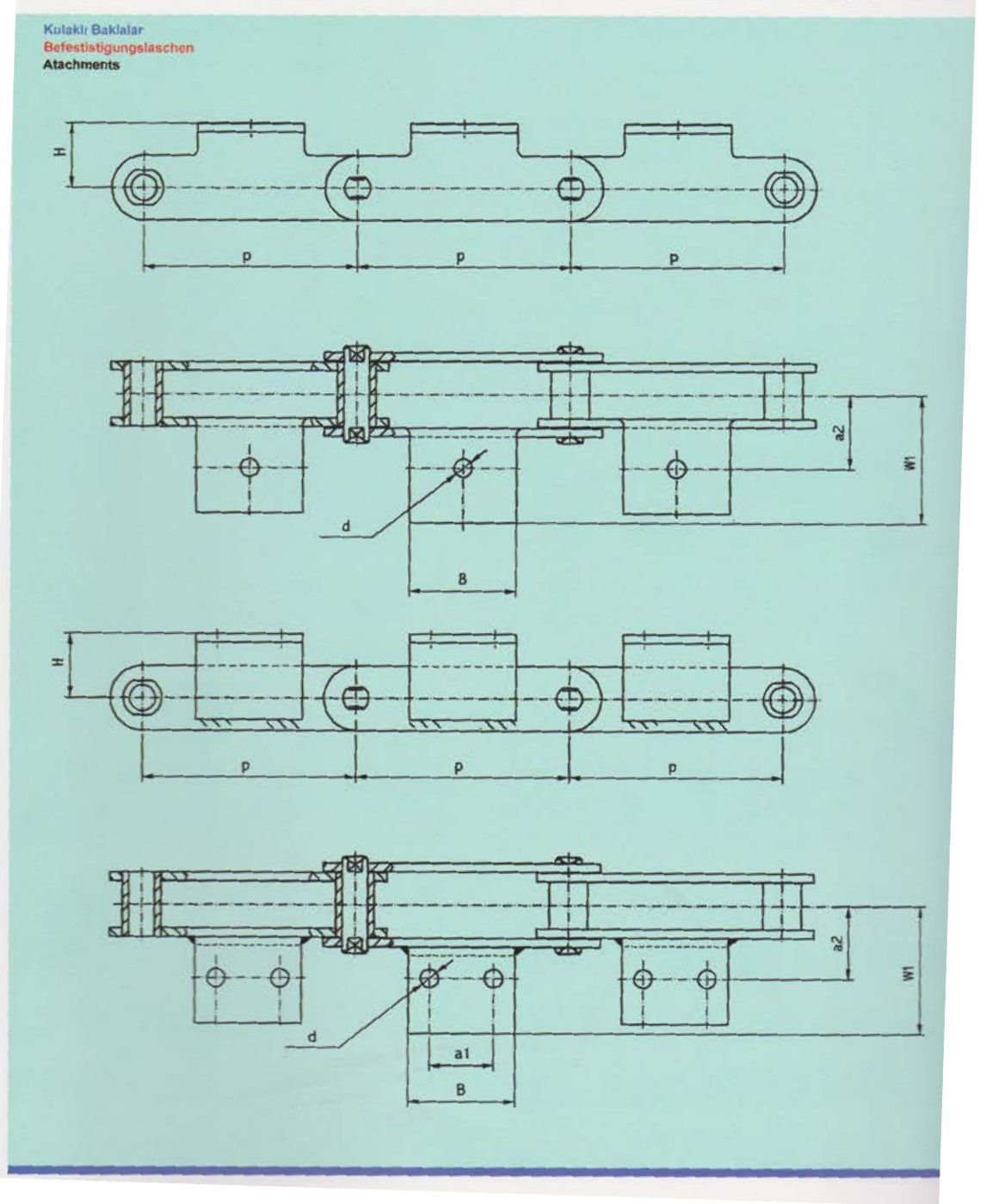

Symbols refer to the technical drawing in the product images.
M 20 – M 160 · 51 sizes
| Zimaş kodu | Norm no. | Hatve (p)mm | İki Delik Ekseni Arası (a1)mm | Zincir - Delik Eksenleri Arası (a2)mm | Kulak Genişliği (B)mm | Delik Ø (d)mm | Bakla Ekseni Kulak Ucu Arası (H)mm | Zincir Ekseni Kulak Ucu Arası (W1)mm | Kulak şekli | Zincir Ağırlığı – Tip O (q)kg/m | Zincir Ağırlığı – Tip A (q)kg/m | Zincir Ağırlığı – Tip B (q)kg/m | Zincir Ağırlığı – Tip D (q)kg/m | Kulak Ağırlığıkg/adet |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Fz-02-01-40 | M 20 | 40 | ● | 27 | 14 | 6,6 | 16 | 42 | ■ | 1,08 | 1,44 | 2,61 | 2,81 | 0,02 |
| Fz-02-01-50 | – | 50 | ● | – | 14 | – | – | – | ■ | 1,01 | 1,29 | 2,23 | 2,39 | 0,02 |
| Fz-02-01-63 | – | 63 | 20 | – | 35 | – | – | – | 25 x 20 x 3 | 0,99 | 1,23 | 2,00 | 2,13 | 0,04 |
| Fz-02-01-80 | – | 80 | 35 | – | 50 | – | – | – | – | 0,90 | 1,07 | 1,67 | 1,77 | 0,06 |
| Fz-02-01-100 | – | 100 | 50 | – | 65 | – | – | – | – | 0,86 | 1,00 | 1,47 | 1,55 | 0,07 |
| Fz-02-01-125 | – | 125 | 50 | – | 65 | – | – | – | – | 0,82 | 0,95 | 1,32 | 1,38 | 0,07 |
| Fz-02-01-160 | – | 160 | 50 | – | 65 | – | – | – | – | 0,80 | 0,89 | 1,19 | 1,24 | 0,07 |
| Fz-02-02-50 | M 28 | 50 | ● | 32 | 20 | 9 | 20 | 50 | ■ | 1,54 | 1,82 | 3,3 | 3,52 | 0,02 |
| Fz-02-02-63 | – | 63 | ● | – | 20 | – | – | – | ■ | 1,42 | 1,64 | 2,84 | 3,00 | 0,02 |
| Fz-02-02-80 | – | 80 | 25 | – | 45 | – | – | – | 20 x 30 x 3 | 1,32 | 1,50 | 2,44 | 2,57 | 0,05 |
| Fz-02-02-100 | – | 100 | 40 | – | 60 | – | – | – | – | 1,24 | 1,38 | 2,13 | 2,23 | 0,07 |
| Fz-02-02-125 | – | 125 | 65 | – | 85 | – | – | – | – | 1,18 | 1,30 | 1,90 | 1,98 | 0,10 |
| Fz-02-02-160 | – | 160 | 65 | – | 85 | – | – | – | – | 1,13 | 1,22 | 1,69 | 1,75 | 0,10 |
| Fz-02-02-200 | – | 200 | 65 | – | 85 | – | – | – | – | 1,10 | 1,17 | 1,54 | 1,59 | 0,10 |
| Fz-02-03-63 | M 40 | 63 | ● | 35 | 20 | 9 | 25 | 56 | ■ | 2,24 | 2,57 | 4,47 | 4,70 | 0,03 |
| Fz-02-03-80 | – | 80 | 20 | – | 40 | – | – | – | 30 x 30 x 3 | 1,98 | 2,25 | 3,75 | 3,95 | 0,06 |
| Fz-02-03-100 | – | 100 | 40 | – | 60 | – | – | – | – | 1,91 | 2,12 | 3,32 | 3,47 | 0,08 |
| Fz-02-03-125 | – | 125 | 65 | – | 85 | – | – | – | – | 1,81 | 1,98 | 2,93 | 3,06 | 0,15 |
| Fz-02-03-160 | – | 160 | 65 | – | 85 | – | – | – | – | 1,71 | 1,85 | 2,60 | 2,71 | 0,15 |
| Fz-02-03-200 | – | 200 | 65 | – | 85 | – | – | – | – | 1,64 | 1,75 | 2,35 | 2,42 | 0,15 |
| Fz-02-03-250 | – | 250 | 65 | – | 85 | – | – | – | – | 1,60 | 1,68 | 2,16 | 2,23 | 0,15 |
| Fz-02-04-63 | M 56 | 63 | ● | 44 | 22 | 11 | 30 | 70 | ■ | 3,32 | 3,83 | 6,93 | 7,26 | 0,05 |
| Fz-02-04-80 | – | 80 | ● | – | 22 | – | – | – | ■ | 3,01 | 3,41 | 5,86 | 6,20 | 0,05 |
| Fz-02-04-100 | – | 100 | 25 | – | 50 | – | – | – | 40 x 40 x 4 | 2,79 | 3,11 | 5,07 | 5,34 | 0,12 |
| Fz-02-04-125 | – | 125 | 50 | – | 75 | – | – | – | – | 2,60 | 2,87 | 4,43 | 4,65 | 0,18 |
| Fz-02-04-160 | – | 160 | 85 | – | 110 | – | – | – | – | 2,44 | 2,64 | 3,87 | 4,04 | 0,27 |
| Fz-02-04-200 | – | 200 | 85 | – | 110 | – | – | – | – | 2,34 | 2,50 | 3,49 | 3,63 | 0,27 |
| Fz-02-04-250 | – | 250 | 85 | – | 110 | – | – | – | – | 2,25 | 2,37 | 3,16 | 3,27 | 0,27 |
| Fz-02-05-80 | M 80 | 80 | ● | 48 | 22 | 11 | 35 | 80 | ■ | 4,65 | 5,29 | 9,35 | 9,95 | 0,05 |
| Fz-02-05-100 | – | 100 | ● | – | 22 | – | – | – | ■ | 4,27 | 4,79 | 8,03 | 8,50 | 0,05 |
| Fz-02-05-125 | – | 125 | 50 | – | 75 | – | – | – | 40 x 40 x 4 | 3,97 | 4,38 | 6,98 | 7,35 | 0,18 |
| Fz-02-05-160 | – | 160 | 85 | – | 110 | – | – | – | – | 3,70 | 4,03 | 6,05 | 6,35 | 0,27 |
| Fz-02-05-200 | – | 200 | 125 | – | 150 | – | – | – | – | 3,51 | 3,77 | 5,39 | 5,63 | 0,36 |
| Fz-02-05-250 | – | 250 | 125 | – | 150 | – | – | – | – | 3,37 | 3,57 | 4,87 | 5,06 | 0,36 |
| Fz-02-05-315 | – | 315 | 125 | – | 150 | – | – | – | – | 3,24 | 3,41 | 4,43 | 4,58 | 0,36 |
| Fz-02-06-80 | M 112 | 80 | ● | 55 | 28 | 14 | 40 | 92 | 50 x 50 x 6 | 6,75 | 7,88 | 14,6 | 15,3 | 0,13 |
| Fz-02-06-100 | – | 100 | ● | – | 28 | – | – | – | – | 6,15 | 7,06 | 12,4 | 13,0 | 0,13 |
| Fz-02-06-125 | – | 125 | 35 | – | 65 | – | – | – | – | 5,69 | 6,42 | 10,7 | 11,2 | 0,30 |
| Fz-02-06-160 | – | 160 | 65 | – | 95 | – | – | – | – | 5,26 | 5,83 | 9,15 | 9,54 | 0,44 |
| Fz-02-06-200 | – | 200 | 100 | – | 130 | – | – | – | – | 4,97 | 5,43 | 8,09 | 8,38 | 0,59 |
| Fz-02-06-250 | – | 250 | 100 | – | 130 | – | – | – | – | 4,74 | 5,10 | 7,22 | 7,47 | 0,59 |
| Fz-02-06-315 | – | 315 | 100 | – | 130 | – | – | – | – | 4,53 | 4,82 | 6,52 | 6,70 | 0,59 |
| Fz-02-06-400 | – | 400 | 100 | – | 130 | – | – | – | – | 4,38 | 4,61 | 5,94 | 6,08 | 0,59 |
| Fz-02-07-100 | M 160 | 100 | ● | 62 | 30 | 14 | 45 | 100 | 50 x 50 x 6 | 9,70 | 11,2 | 19,5 | 20,4 | 0,14 |
| Fz-02-07-125 | – | 125 | ● | – | 30 | – | – | – | – | 8,85 | 10,1 | 16,7 | 17,5 | 0,14 |
| Fz-02-07-160 | – | 160 | 50 | – | 80 | – | – | – | – | 8,15 | 9,12 | 14,3 | 14,9 | 0,37 |
| Fz-02-07-200 | – | 200 | 85 | – | 115 | – | – | – | – | 7,56 | 8,33 | 12,50 | 13,0 | 0,53 |
| Fz-02-07-250 | – | 250 | 145 | – | 175 | – | – | – | – | 7,22 | 7,82 | 11,1 | 11,5 | 0,80 |
| Fz-02-07-315 | – | 315 | 145 | – | 175 | – | – | – | – | 6,88 | 7,38 | 9,95 | 10,3 | 0,80 |
| Fz-02-07-400 | – | 400 | 145 | – | 175 | – | – | – | – | 6,57 | 6,95 | 9,00 | 9,25 | 0,80 |
| Fz-02-07-500 | – | 500 | 145 | – | 175 | – | – | – | – | 6,36 | 6,68 | 8,35 | 8,52 | 0,80 |
M 224 – M 900 · 36 sizes
| Zimaş kodu | Norm no. | Hatve (p)mm | İki Delik Ekseni Arası (a1)mm | Zincir - Delik Eksenleri Arası *** (a2)mm | Kulak Genişliği (B)mm | Delik Ø (d)mm | Bakla Ekseni Kulak Ucu Arası *** (H)mm | Zincir Ekseni Kulak Ucu Arası (W1)mm | Kulak şekli | Zincir Ağırlığı – Tip O (q)kg/m | Zincir Ağırlığı – Tip A (q)kg/m | Zincir Ağırlığı – Tip B (q)kg/m | Zincir Ağırlığı – Tip D (q)kg/m | Kulak Ağırlığıkg/adet |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Fz-02-08-125 | M 224 | 125 | ● | 70 | 35 | 18 | 55 | 114 | 60 x 60 x 8 | 13,1 | 14,9 | 26,6 | 27,8 | 0,25 |
| Fz-02-08-160 | – | 160 | ● | – | 35 | – | – | – | – | 11,9 | 13,3 | 22,4 | 23,4 | 0,25 |
| Fz-02-08-200 | – | 200 | 65 | – | 100 | – | – | – | – | 11,1 | 12,2 | 19,5 | 20,3 | 0,71 |
| Fz-02-08-250 | – | 250 | 125 | – | 160 | – | – | – | – | 10,3 | 11,2 | 17,1 | 17,7 | 1,13 |
| Fz-02-08-315 | – | 315 | 190 | – | 225 | – | – | – | – | 9,78 | 10,5 | 15,1 | 15,7 | 1,60 |
| Fz-02-08-400 | – | 400 | 190 | – | 225 | – | – | – | – | 9,30 | 9,86 | 13,5 | 13,9 | 1,60 |
| Fz-02-08-500 | – | 500 | 190 | – | 225 | – | – | – | – | 8,97 | 9,40 | 12,3 | 12,6 | 1,60 |
| Fz-02-08-630 | – | 630 | 190 | – | 225 | – | – | – | – | 8,67 | 9,02 | 11,3 | 11,6 | 1,60 |
| Fz-03-09-160 | M 315 | 160 | ● | 80 | 35 | 18 | 65 | 125 | 70 x 70 x 9 | 18,3 | 20,5 | 34,4 | 36,1 | 0,27 |
| Fz-03-09-200 | – | 200 | 50 | – | 85 | – | – | – | – | 16,7 | 18,6 | 29,6 | 31,0 | 0,66 |
| Fz-03-09-250 | – | 250 | 100 | – | 135 | – | – | – | – | 15,6 | 17,1 | 25,9 | 27,1 | 1,04 |
| Fz-03-09-315 | – | 315 | 155 | – | 190 | – | – | – | – | 14,6 | 15,8 | 22,9 | 23,7 | 1,46 |
| Fz-03-09-400 | – | 400 | 155 | – | 190 | – | – | – | – | 13,9 | 14,8 | 20,3 | 21,2 | 1,46 |
| Fz-03-09-500 | – | 500 | 155 | – | 190 | – | – | – | – | 13,3 | 14,1 | 18,5 | 19,1 | 1,46 |
| Fz-03-09-630 | – | 630 | 155 | – | 190 | – | – | – | – | 12,8 | 13,4 | 16,9 | 17,4 | 1,46 |
| Fz-03-10-200 | M 450 | 200 | ● | 90 | 40 | 18 | 75 | 140 | 70 x 70 x 9 | 24,2 | 27,5 | 46,0 | 47,8 | 0,37 |
| Fz-03-10-250 | – | 250 | 85 | – | 125 | – | – | – | – | 22,4 | 25,0 | 39,8 | 41,4 | 1,17 |
| Fz-03-10-315 | – | 315 | 155 | – | 195 | – | – | – | – | 20,9 | 22,9 | 34,7 | 36,0 | 1,82 |
| Fz-03-10-400 | – | 400 | 240 | – | 280 | – | – | – | – | 19,7 | 21,3 | 30,6 | 31,5 | 2,62 |
| Fz-03-10-500 | – | 500 | 240 | – | 280 | – | – | – | – | 18,7 | 20,1 | 27,5 | 28,2 | 2,62 |
| Fz-03-10-630 | – | 630 | 240 | – | 280 | – | – | – | – | 18,0 | 19,0 | 24,9 | 25,5 | 2,62 |
| Fz-03-10-800 | – | 800 | 240 | – | 280 | – | – | – | – | 17,4 | 18,2 | 22,8 | 23,3 | 2,62 |
| Fz-03-11-250 | M 630 | 250 | ● | 115 | 50 | 24 | 90 | 190 | 100 x 100 x 12 | 34,8 | 39,6 | 62,8 | 65,7 | 0,89 |
| Fz-03-11-315 | – | 315 | 100 | – | 150 | – | – | – | – | 32,2 | 35,4 | 54,3 | 56,5 | 2,67 |
| Fz-03-11-400 | – | 400 | 190 | – | 240 | – | – | – | – | 30,3 | 32,7 | 47,8 | 49,5 | 4,27 |
| Fz-03-11-500 | – | 500 | 300 | – | 350 | – | – | – | – | 28,4 | 30,4 | 42,4 | 43,8 | 6,22 |
| Fz-03-11-630 | – | 630 | 300 | – | 350 | – | – | – | – | 27,1 | 28,7 | 38,3 | 39,3 | 6,22 |
| Fz-03-11-800 | – | 800 | 300 | – | 350 | – | – | – | – | 26,0 | 27,2 | 34,7 | 35,6 | 6,22 |
| Fz-03-11-1000 | – | 1000 | 300 | – | 350 | – | – | – | – | 25,2 | 26,2 | 32,2 | 32,9 | 6,22 |
| Fz-03-12-250 | M 900 | 250 | ● | 140 | 60 | 30 | 110 | 240 | 120 x 120 x 15 | 51,2 | 58,0 | 100 | 106 | 1,59 |
| Fz-03-12-315 | – | 315 | 65 | – | 125 | – | – | – | – | 47,0 | 52,3 | 85,7 | 90,2 | 3,32 |
| Fz-03-12-400 | – | 400 | 155 | – | 215 | – | – | – | – | 43,5 | 47,7 | 74,0 | 77,4 | 5,70 |
| Fz-03-12-500 | – | 500 | 240 | – | 300 | – | – | – | – | 40,8 | 44,2 | 65,3 | 68,1 | 7,95 |
| Fz-03-12-630 | – | 630 | 240 | – | 300 | – | – | – | – | 38,8 | 41,4 | 58,1 | 60,4 | 7,95 |
| Fz-03-12-800 | – | 800 | 240 | – | 300 | – | – | – | – | 36,9 | 39,0 | 52,2 | 51,7 | 7,95 |
| Fz-03-12-1000 | – | 1000 | 240 | – | 300 | – | – | – | – | 35,5 | 37,2 | 47,7 | 49,1 | 7,95 |
