Gall Chain DIN 8150
Zimaş
Translated automatically from Turkish.
Wholesale price and minimum order are shown to buyer accounts only.
SupplierTopbaş GroupBursa · Verified companySee wholesale price, request a sampleDocuments and minimum order are also shown in a buyer account. Free for buyers.
Description
Gall (pinned plate) chain for low-speed, high-load lifting and pulling applications. Standard: DIN 8150 (certain sizes available in straight form or non-standard). 23 different sizes; pitch (p) 6 – 120 mm; breaking load 1,250 – 1,500,000 N. All sizes listed in the dimension table below; technical drawings in product images. Zimaş product codes: Gz-01-01-6, Gz-01-02-8, Gz-01-03-10, Gz-01-04-13, Gz-01-05-15, Gz-01-06-20, Gz-01-07-20, Gz-01-08-25, Gz-01-09-25, Gz-01-10-30, Gz-01-11-30, Gz-01-12-35, Gz-01-13-40, Gz-01-14-45, Gz-01-15-50, Gz-01-16-55, Gz-01-17-60, Gz-01-18-70, Gz-01-19-80, Gz-01-20-90, Gz-01-21-100, Gz-01-22-110, Gz-01-23-120.
Product details
- Origin
- TR
Size table

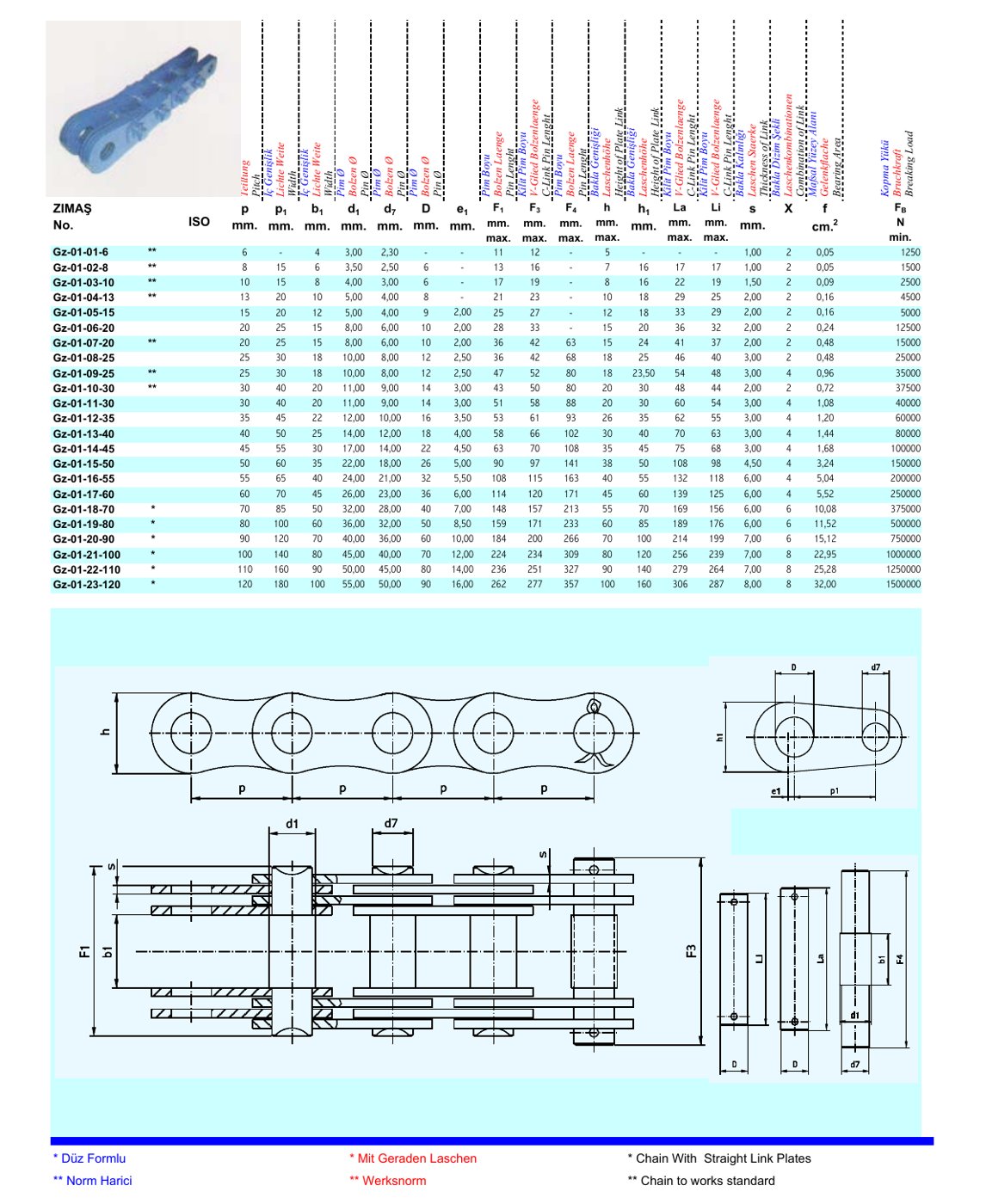

Symbols refer to the technical drawing in the product images.
| Zimaş kodu | Hatve (p)mm | p1mm | İç Genişlik (b1)mm | Pim Ø (d1)mm | Pim Ø (d7)mm | Pim Ø (D)mm | e1mm | Pim Boyu (F1)mm | Kilit Pim Boyu (F3)mm | Pim Boyu (F4)mm | Bakla Genişliği (h)mm | Bakla Genişliği (h1)mm | Kilit Pim Boyu (La)mm | Kilit Pim Boyu (Li)mm | Bakla Kalınlığı (s)mm | Bakla Dizim Şekli (X) | Mafsal Yüzey Alanı (f)cm² | Kopma Yükü (FB)N |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Gz-01-01-6 | 6 | - | 4 | 3,00 | 2,30 | - | - | 11 | 12 | - | 5 | - | - | - | 1,00 | 2 | 0,05 | 1250 |
| Gz-01-02-8 | 8 | 15 | 6 | 3,50 | 2,50 | 6 | - | 13 | 16 | - | 7 | 16 | 17 | 17 | 1,00 | 2 | 0,05 | 1500 |
| Gz-01-03-10 | 10 | 15 | 8 | 4,00 | 3,00 | 6 | - | 17 | 19 | - | 8 | 16 | 22 | 19 | 1,50 | 2 | 0,09 | 2500 |
| Gz-01-04-13 | 13 | 20 | 10 | 5,00 | 4,00 | 8 | - | 21 | 23 | - | 10 | 18 | 29 | 25 | 2,00 | 2 | 0,16 | 4500 |
| Gz-01-05-15 | 15 | 20 | 12 | 5,00 | 4,00 | 9 | 2,00 | 25 | 27 | - | 12 | 18 | 33 | 29 | 2,00 | 2 | 0,16 | 5000 |
| Gz-01-06-20 | 20 | 25 | 15 | 8,00 | 6,00 | 10 | 2,00 | 28 | 33 | - | 15 | 20 | 36 | 32 | 2,00 | 2 | 0,24 | 12500 |
| Gz-01-07-20 | 20 | 25 | 15 | 8,00 | 6,00 | 10 | 2,00 | 36 | 42 | 63 | 15 | 24 | 41 | 37 | 2,00 | 2 | 0,48 | 15000 |
| Gz-01-08-25 | 25 | 30 | 18 | 10,00 | 8,00 | 12 | 2,50 | 36 | 42 | 68 | 18 | 25 | 46 | 40 | 3,00 | 2 | 0,48 | 25000 |
| Gz-01-09-25 | 25 | 30 | 18 | 10,00 | 8,00 | 12 | 2,50 | 47 | 52 | 80 | 18 | 23,50 | 54 | 48 | 3,00 | 4 | 0,96 | 35000 |
| Gz-01-10-30 | 30 | 40 | 20 | 11,00 | 9,00 | 14 | 3,00 | 43 | 50 | 80 | 20 | 30 | 48 | 44 | 2,00 | 2 | 0,72 | 37500 |
| Gz-01-11-30 | 30 | 40 | 20 | 11,00 | 9,00 | 14 | 3,00 | 51 | 58 | 88 | 20 | 30 | 60 | 54 | 3,00 | 4 | 1,08 | 40000 |
| Gz-01-12-35 | 35 | 45 | 22 | 12,00 | 10,00 | 16 | 3,50 | 53 | 61 | 93 | 26 | 35 | 62 | 55 | 3,00 | 4 | 1,20 | 60000 |
| Gz-01-13-40 | 40 | 50 | 25 | 14,00 | 12,00 | 18 | 4,00 | 58 | 66 | 102 | 30 | 40 | 70 | 63 | 3,00 | 4 | 1,44 | 80000 |
| Gz-01-14-45 | 45 | 55 | 30 | 17,00 | 14,00 | 22 | 4,50 | 63 | 70 | 108 | 35 | 45 | 75 | 68 | 3,00 | 4 | 1,68 | 100000 |
| Gz-01-15-50 | 50 | 60 | 35 | 22,00 | 18,00 | 26 | 5,00 | 90 | 97 | 141 | 38 | 50 | 108 | 98 | 4,50 | 4 | 3,24 | 150000 |
| Gz-01-16-55 | 55 | 65 | 40 | 24,00 | 21,00 | 32 | 5,50 | 108 | 115 | 163 | 40 | 55 | 132 | 118 | 6,00 | 4 | 5,04 | 200000 |
| Gz-01-17-60 | 60 | 70 | 45 | 26,00 | 23,00 | 36 | 6,00 | 114 | 120 | 171 | 45 | 60 | 139 | 125 | 6,00 | 4 | 5,52 | 250000 |
| Gz-01-18-70 | 70 | 85 | 50 | 32,00 | 28,00 | 40 | 7,00 | 148 | 157 | 213 | 55 | 70 | 169 | 156 | 6,00 | 6 | 10,08 | 375000 |
| Gz-01-19-80 | 80 | 100 | 60 | 36,00 | 32,00 | 50 | 8,50 | 159 | 171 | 233 | 60 | 85 | 189 | 176 | 6,00 | 6 | 11,52 | 500000 |
| Gz-01-20-90 | 90 | 120 | 70 | 40,00 | 36,00 | 60 | 10,00 | 184 | 200 | 266 | 70 | 100 | 214 | 199 | 7,00 | 6 | 15,12 | 750000 |
| Gz-01-21-100 | 100 | 140 | 80 | 45,00 | 40,00 | 70 | 12,00 | 224 | 234 | 309 | 80 | 120 | 256 | 239 | 7,00 | 8 | 22,95 | 1000000 |
| Gz-01-22-110 | 110 | 160 | 90 | 50,00 | 45,00 | 80 | 14,00 | 236 | 251 | 327 | 90 | 140 | 279 | 264 | 7,00 | 8 | 25,28 | 1250000 |
| Gz-01-23-120 | 120 | 180 | 100 | 55,00 | 50,00 | 90 | 16,00 | 262 | 277 | 357 | 100 | 160 | 306 | 287 | 8,00 | 8 | 32,00 | 1500000 |
