API Rotary Chain DIN 8182
Zimaş
Translated automatically from Turkish.
Wholesale price and minimum order are shown to buyer accounts only.
SupplierTopbaş GroupBursa · Verified companySee wholesale price, request a sampleDocuments and minimum order are also shown in a buyer account. Free for buyers.
Description
Heavy duty chain for use in oil and gas drilling equipment (rotary drive). Type A and B options available. Standard: DIN 8182 (API). 21 different sizes; pitch (p) 31.75 – 177.8 mm; breaking load 109,000 – 2,100,000 N. All sizes detailed in the size table below; technical drawings shown in product images.
Product details
- Origin
- TR
Size table

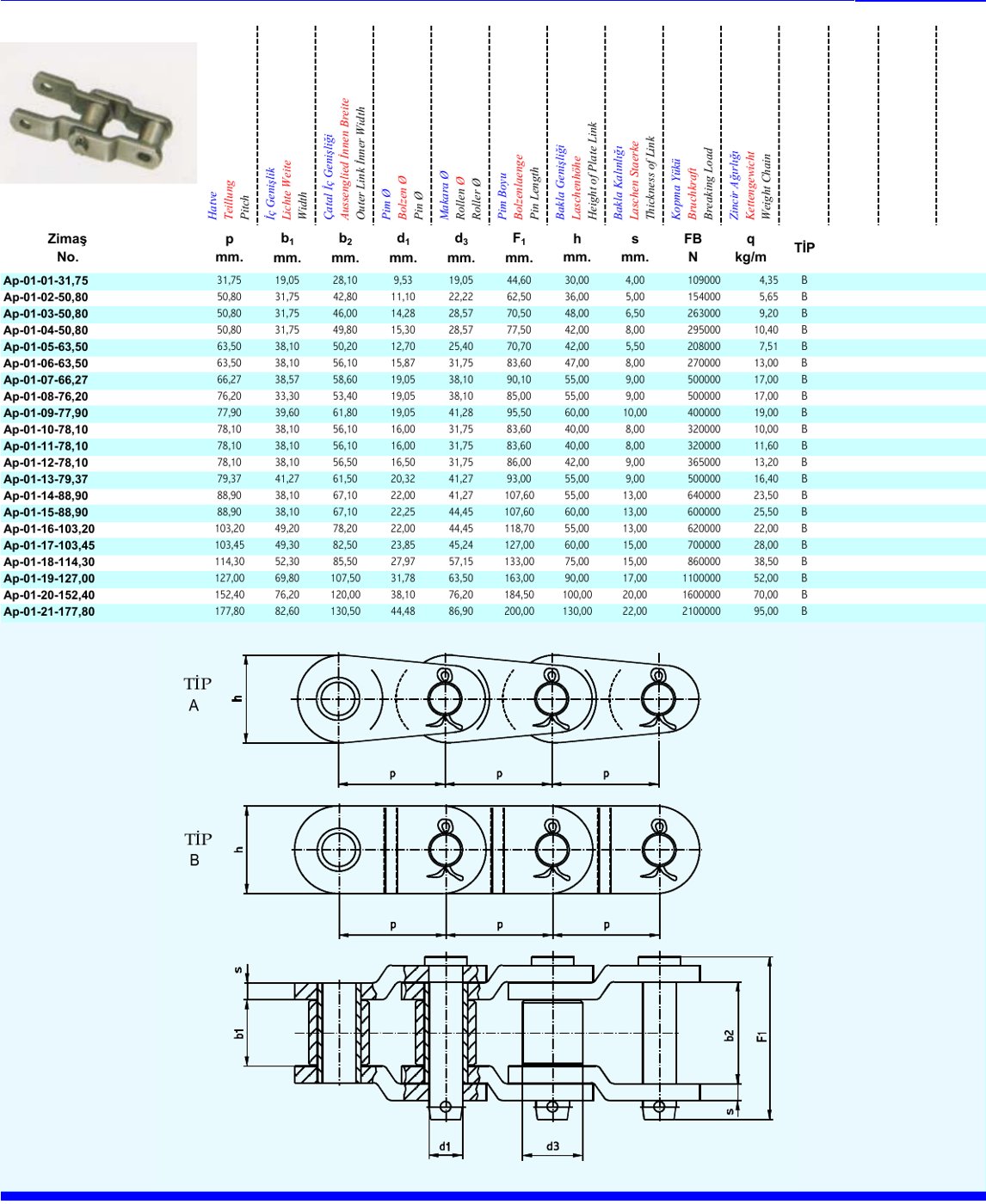

Symbols refer to the technical drawing in the product images.
| Zimaş kodu | Hatve (p)mm | İç Genişlik (b1)mm | Çatal İç Genişliği (b2)mm | Pim Ø (d1)mm | Makara Ø (d3)mm | Pim Boyu (F1)mm | Bakla Genişliği (h)mm | Bakla Kalınlığı (s)mm | Kopma Yükü (FB)N | Zincir Ağırlığı (q)kg/m | Tip |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Ap-01-01-31,75 | 31,75 | 19,05 | 28,10 | 9,53 | 19,05 | 44,60 | 30,00 | 4,00 | 109000 | 4,35 | B |
| Ap-01-02-50,80 | 50,80 | 31,75 | 42,80 | 11,10 | 22,22 | 62,50 | 36,00 | 5,00 | 154000 | 5,65 | B |
| Ap-01-03-50,80 | 50,80 | 31,75 | 46,00 | 14,28 | 28,57 | 70,50 | 48,00 | 6,50 | 263000 | 9,20 | B |
| Ap-01-04-50,80 | 50,80 | 31,75 | 49,80 | 15,30 | 28,57 | 77,50 | 42,00 | 8,00 | 295000 | 10,40 | B |
| Ap-01-05-63,50 | 63,50 | 38,10 | 50,20 | 12,70 | 25,40 | 70,70 | 42,00 | 5,50 | 208000 | 7,51 | B |
| Ap-01-06-63,50 | 63,50 | 38,10 | 56,10 | 15,87 | 31,75 | 83,60 | 47,00 | 8,00 | 270000 | 13,00 | B |
| Ap-01-07-66,27 | 66,27 | 38,57 | 58,60 | 19,05 | 38,10 | 90,10 | 55,00 | 9,00 | 500000 | 17,00 | B |
| Ap-01-08-76,20 | 76,20 | 33,30 | 53,40 | 19,05 | 38,10 | 85,00 | 55,00 | 9,00 | 500000 | 17,00 | B |
| Ap-01-09-77,90 | 77,90 | 39,60 | 61,80 | 19,05 | 41,28 | 95,50 | 60,00 | 10,00 | 400000 | 19,00 | B |
| Ap-01-10-78,10 | 78,10 | 38,10 | 56,10 | 16,00 | 31,75 | 83,60 | 40,00 | 8,00 | 320000 | 10,00 | B |
| Ap-01-11-78,10 | 78,10 | 38,10 | 56,10 | 16,00 | 31,75 | 83,60 | 40,00 | 8,00 | 320000 | 11,60 | B |
| Ap-01-12-78,10 | 78,10 | 38,10 | 56,50 | 16,50 | 31,75 | 86,00 | 42,00 | 9,00 | 365000 | 13,20 | B |
| Ap-01-13-79,37 | 79,37 | 41,27 | 61,50 | 20,32 | 41,27 | 93,00 | 55,00 | 9,00 | 500000 | 16,40 | B |
| Ap-01-14-88,90 | 88,90 | 38,10 | 67,10 | 22,00 | 41,27 | 107,60 | 55,00 | 13,00 | 640000 | 23,50 | B |
| Ap-01-15-88,90 | 88,90 | 38,10 | 67,10 | 22,25 | 44,45 | 107,60 | 60,00 | 13,00 | 600000 | 25,50 | B |
| Ap-01-16-103,20 | 103,20 | 49,20 | 78,20 | 22,00 | 44,45 | 118,70 | 55,00 | 13,00 | 620000 | 22,00 | B |
| Ap-01-17-103,45 | 103,45 | 49,30 | 82,50 | 23,85 | 45,24 | 127,00 | 60,00 | 15,00 | 700000 | 28,00 | B |
| Ap-01-18-114,30 | 114,30 | 52,30 | 85,50 | 27,97 | 57,15 | 133,00 | 75,00 | 15,00 | 860000 | 38,50 | B |
| Ap-01-19-127,00 | 127,00 | 69,80 | 107,50 | 31,78 | 63,50 | 163,00 | 90,00 | 17,00 | 1100000 | 52,00 | B |
| Ap-01-20-152,40 | 152,40 | 76,20 | 120,00 | 38,10 | 76,20 | 184,50 | 100,00 | 20,00 | 1600000 | 70,00 | B |
| Ap-01-21-177,80 | 177,80 | 82,60 | 130,50 | 44,48 | 86,90 | 200,00 | 130,00 | 22,00 | 2100000 | 95,00 | B |
