Fördeyer Zincir DIN 8167 (M Serisi)
Zimaş
Toptan fiyat ve asgari sipariş adedi yalnızca alıcı hesaplarına gösterilir.
TedarikçiTopbaş GroupBursa · Doğrulanmış firmaToptan fiyatı gör, numune isteBelgeler ve asgari sipariş de alıcı hesabında görünür. Alıcılar için ücretsiz.
Açıklama
Ağır hizmet tipi M serisi taşıma zinciri. Tip O, A, B ve D makara seçenekleri; her zincir numarası farklı adımlarla üretilir. Norm: DIN 8167. 28 farklı ölçü; hatve (p) 160 – 1.000 mm; kopma yükü 315.000 – 900.000 N. Tüm ölçüler aşağıdaki ölçü tablosunda; teknik çizim ürün görsellerinde yer alır. Zimaş kodları: Fz-02-09-160, Fz-02-09-200, Fz-02-09-250, Fz-02-09-315, Fz-02-09-400, Fz-02-09-500, Fz-02-09-630, Fz-02-10-200, Fz-02-10-250, Fz-02-10-315, Fz-02-10-400, Fz-02-10-500, Fz-02-10-630, Fz-02-10-800, Fz-02-11-250, Fz-02-11-315, Fz-02-11-400, Fz-02-11-500, Fz-02-11-630, Fz-02-11-800, Fz-02-11-1000, Fz-02-12-250, Fz-02-12-315, Fz-02-12-400, Fz-02-12-500, Fz-02-12-630, Fz-02-12-800, Fz-02-12-1000.
Ürün bilgileri
- Menşe
- TR
Ölçü tablosu

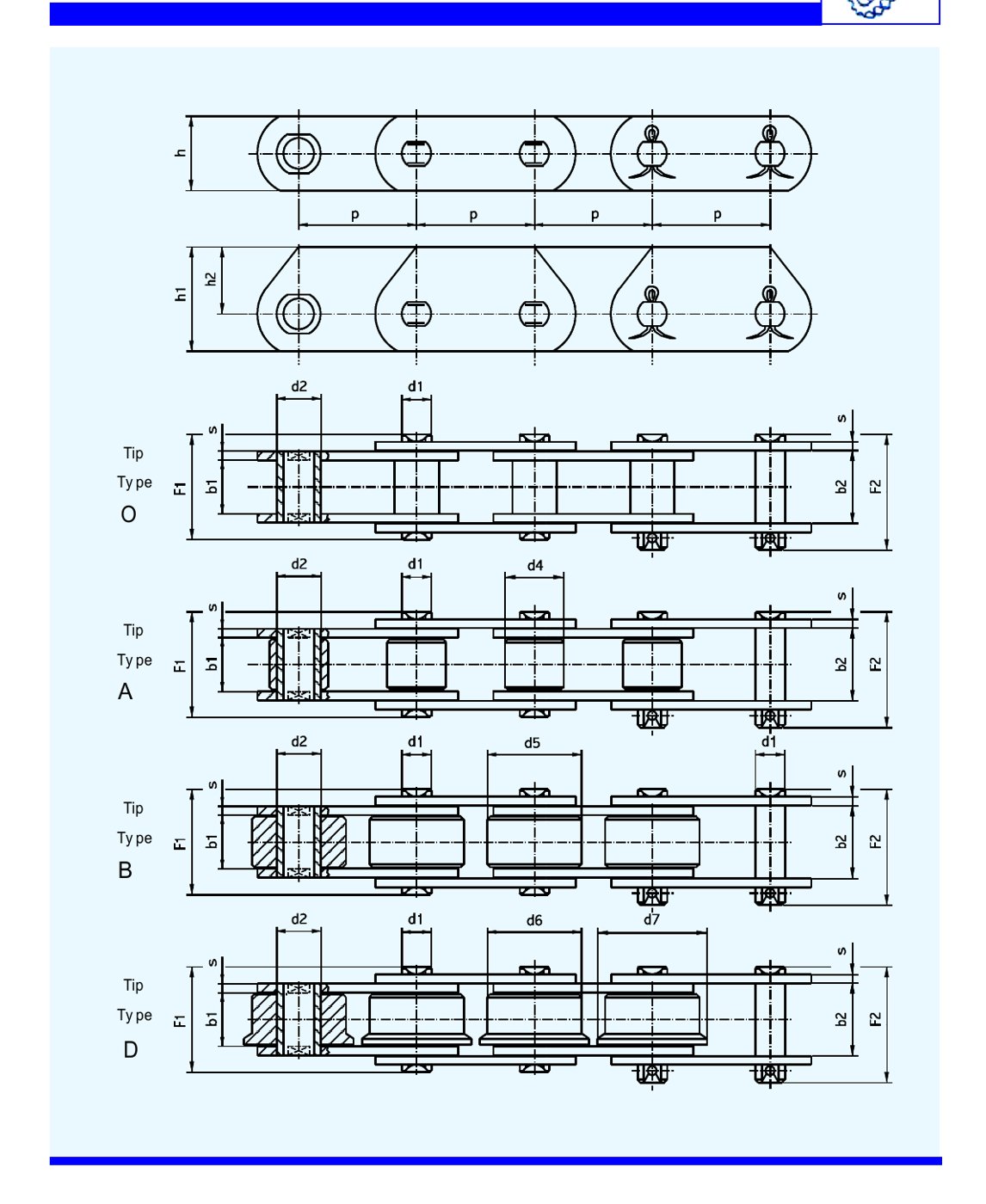

Sembollerin karşılığı ürün görsellerindeki teknik çizimde gösterilir.
| Zimaş kodu | Norm no. | Hatve (p)mm | İç Genişlik (b1)mm | Çatal İç Genişlik (b2)mm | Pim Ø (d1)mm | Burç Ø (d2)mm | Makara Ø (d4)mm | Makara Ø (d5)mm | Makara Ø (d6/d7)mm | Çapraz Hatve (e)mm | Pim Boyu (F1)mm | Kilit Pim Boyu (F2)mm | Bakla Genişliği (h)mm | Bakla Kalınlığı (s)mm | Bakla Genişliği (h1)mm | Bakla Genişliği (h2)mm | Mafsal Yüzey Alanı (f)cm² | Kopma Yükü (FB)N |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Fz-02-09-160 | M 315 | 160 | 48 | 70,5 | 25 | 36 | 50 | 100 | 100/120 | 10,5 | 100,5 | 106 | 70 | 10 | 100 | 65 | 17,50 | 315000 |
| Fz-02-09-200 | – | 200 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| Fz-02-09-250 | – | 250 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| Fz-02-09-315 | – | 315 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| Fz-02-09-400 | – | 400 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| Fz-02-09-500 | – | 500 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| Fz-02-09-630 | – | 630 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| Fz-02-10-200 | M 450 | 200 | 56 | 82,5 | 30 | 42 | 60 | 120 | 120/140 | 11,5 | 118,5 | 125 | 80 | 12 | 120 | 80 | 24,60 | 450000 |
| Fz-02-10-250 | – | 250 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| Fz-02-10-315 | – | 315 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| Fz-02-10-400 | – | 400 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| Fz-02-10-500 | – | 500 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| Fz-02-10-630 | – | 630 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| Fz-02-10-800 | – | 800 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| Fz-02-11-250 | M 630 | 250 | 66 | 97 | 36 | 50 | 70 | 140 | 140/170 | 14,5 | 140 | 148,5 | 100 | 14 | 140 | 90 | 34,56 | 630000 |
| Fz-02-11-315 | – | 315 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| Fz-02-11-400 | – | 400 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| Fz-02-11-500 | – | 500 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| Fz-02-11-630 | – | 630 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| Fz-02-11-800 | – | 800 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| Fz-02-11-1000 | – | 1000 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| Fz-02-12-250 | M 900 | 250 | 78 | 113 | 44 | 60 | 85 | 170 | 170/210 | 17 | 162 | 170,5 | 120 | 16 | 180 | 120 | 49,28 | 900000 |
| Fz-02-12-315 | – | 315 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| Fz-02-12-400 | – | 400 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| Fz-02-12-500 | – | 500 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| Fz-02-12-630 | – | 630 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| Fz-02-12-800 | – | 800 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| Fz-02-12-1000 | – | 1000 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
