Endüstriyel Yedek Parça ve Rulman

Fleyer (Leaf) Zincir DIN 8152 – BL / LH Serisi

Zimaş

Toptan fiyat ve asgari sipariş adedi yalnızca alıcı hesaplarına gösterilir.

TedarikçiTopbaş GroupBursa · Doğrulanmış firmaToptan fiyatı gör, numune iste

Belgeler ve asgari sipariş de alıcı hesabında görünür. Alıcılar için ücretsiz.

Açıklama

Forklift, istif makinesi ve kaldırma ekipmanlarında kullanılan yaprak (leaf) zincir. 2x2, 2x3, 3x4, 4x4, 4x6, 6x6 ve 8x8 bakla kombinasyonları. Norm: DIN 8152. 49 farklı ölçü; hatve (p) 12,7 – 63,5 mm; kopma yükü 22.200 – 1.301.100 N. Tüm ölçüler aşağıdaki ölçü tablosunda; teknik çizim ürün görsellerinde yer alır. Zimaş kodları: Fl-01-01-12,70, Fl-01-02-12,70, Fl-01-03-12,70, Fl-01-04-12,70, Fl-01-05-12,70, Fl-01-06-12,70, Fl-01-07-12,70, Fl-01-08-15,875, Fl-01-09-15,875, Fl-01-10-15,875, Fl-01-11-15,875, Fl-01-12-15,875, Fl-01-13-15,875, Fl-01-14-19,05, Fl-01-15-19,05, Fl-01-16-19,05, Fl-01-17-19,05, Fl-01-18-19,05, Fl-01-19-19,05, Fl-01-20-25,40, Fl-01-21-25,40, Fl-01-22-25,40, Fl-01-23-25,40, Fl-01-24-25,40, Fl-01-25-25,40, Fl-01-26-25,40, Fl-01-27-31,75, Fl-01-28-31,75, Fl-01-29-31,75, Fl-01-30-31,75, Fl-01-31-31,75, Fl-01-32-31,75, Fl-01-33-31,75, Fl-01-34-38,10, Fl-01-35-38,10, Fl-01-36-38,10, Fl-01-37-38,10, Fl-01-38-44,45, Fl-01-39-44,45, Fl-01-40-50,80, Fl-01-41-50,80, Fl-01-42-50,80, Fl-01-43-50,80, Fl-01-44-50,80, Fl-01-45-63,50, Fl-01-46-63,50, Fl-01-47-63,50, Fl-01-48-63,50, Fl-01-49-63,50.

Ürün bilgileri

Menşe
TR

Ölçü tablosu

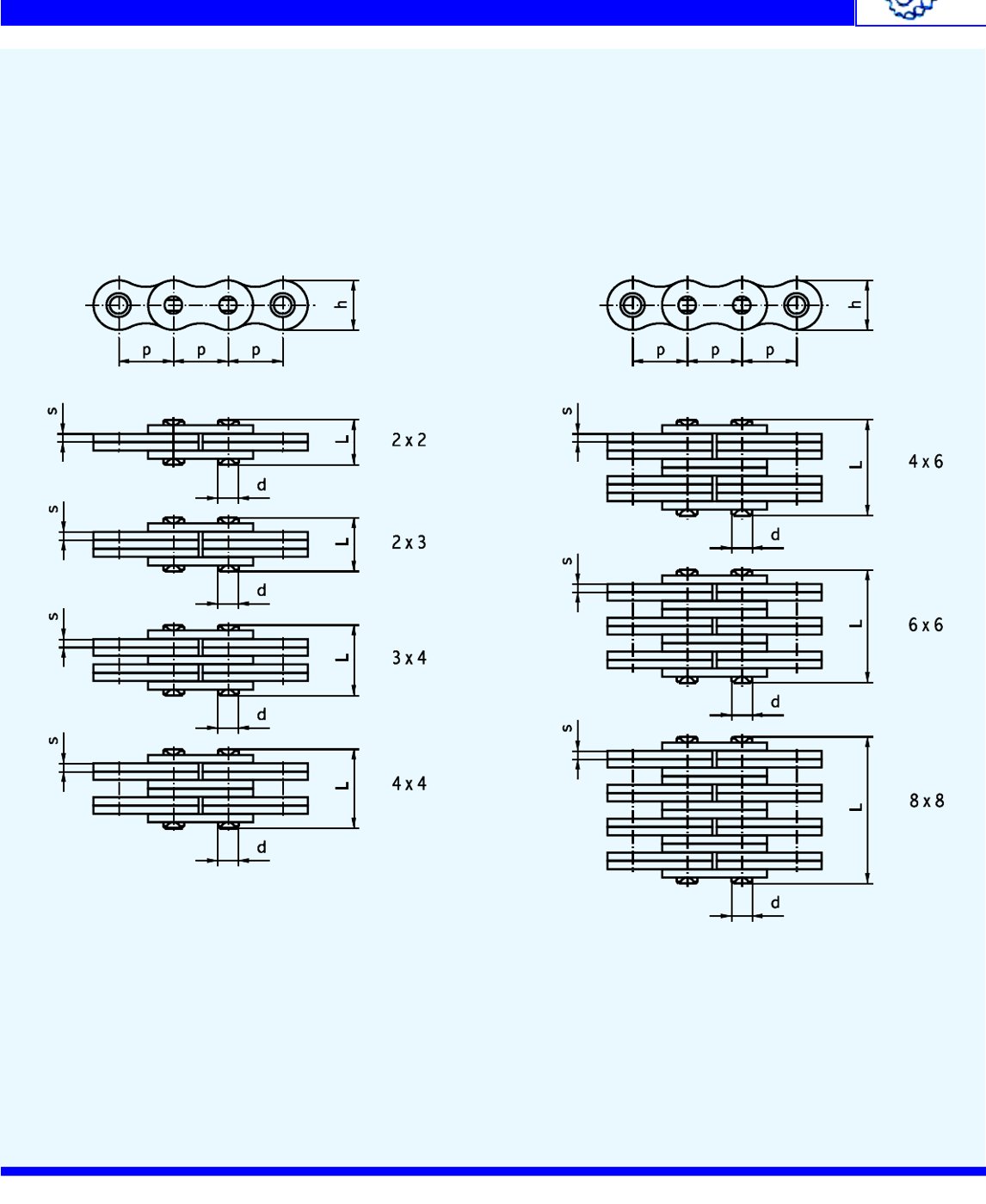

Sembollerin karşılığı ürün görsellerindeki teknik çizimde gösterilir.

Zimaş koduNorm no.Hatve (p)mmBakla Dizim ŞekliBakla Genişliği (h)mmBakla Kalınlığı (s)mmPim Ø (d1)mmPim Boyu (L)mmKopma Yükü (FB)NZincir Ağırlığı (q)kg/m
Fl-01-01-12,70LH 0822 BL 42212,702 x 211,802,005,0810,90222000,63
Fl-01-02-12,70LH 0823 BL 42312,702 x 311,802,005,0813,00222000,78
Fl-01-03-12,70LH 0834 BL 43412,703 x 411,802,005,0817,10333001,08
Fl-01-04-12,70LH 0844 BL 44412,704 x 411,802,005,0819,20444001,23
Fl-01-05-12,70LH 0846 BL 44612,704 x 611,802,005,0823,40444001,53
Fl-01-06-12,70LH 0866 BL 46612,706 x 611,802,005,0827,60890001,83
Fl-01-07-12,70LH 0888 BL 48812,708 x 811,802,005,0836,001000002,43
Fl-01-08-15,875LH 1023 BL 52315,8752 x 314,602,406,0015,60326001,18
Fl-01-09-15,875LH 1034 BL 53415,8753 x 414,602,406,0020,50489001,63
Fl-01-10-15,875LH 1044 BL 54415,8754 x 414,602,406,0023,10652001,86
Fl-01-11-15,875LH 1046 BL 54615,8754 x 614,602,406,0028,00652002,32
Fl-01-12-15,875LH 1066 BL 56615,8756 x 614,602,406,0032,801100002,77
Fl-01-13-15,875LH 1088 BL 58815,8758 x 814,602,406,0042,601300003,68
Fl-01-14-19,05LH 1223 BL 62319,052 x 318,003,007,9219,80489001,92
Fl-01-15-19,05LH 1234 BL 63419,053 x 418,003,007,9225,40734002,66
Fl-01-16-19,05LH 1244 BL 64419,054 x 418,003,007,9228,50978003,03
Fl-01-17-19,05LH 1246 BL 64619,054 x 618,003,007,9234,60978003,78
Fl-01-18-19,05LH 1266 BL 66619,056 x 618,003,007,9241,001800004,52
Fl-01-19-19,05LH 1288 BL 68819,058 x 818,003,007,9253,002350006,00
Fl-01-20-25,40LH 1622 BL 82225,402 x 224,004,009,5321,00845002,40
Fl-01-21-25,40LH 1623 BL 82325,402 x 324,004,009,5325,10845002,98
Fl-01-22-25,40LH 1634 BL 83425,403 x 424,004,009,5333,401267004,14
Fl-01-23-25,40LH 1644 BL 84425,404 x 424,004,009,5337,601690004,72
Fl-01-24-25,40LH 1646 BL 84625,404 x 624,004,009,5345,801690005,88
Fl-01-25-25,40LH 1666 BL 86625,406 x 624,004,009,5354,002750007,04
Fl-01-26-25,40LH 1688 BL 88825,408 x 824,004,009,5370,403280009,37
Fl-01-27-31,75LH 2022 BL 102231,752 x 230,005,0011,1025,701157003,57
Fl-01-28-31,75LH 2023 BL 102331,752 x 330,005,0011,1030,801157004,44
Fl-01-29-31,75LH 2034 BL 103431,753 x 430,005,0011,1041,001736006,17
Fl-01-30-31,75LH 2044 BL 104431,754 x 430,005,0011,1046,102314007,04
Fl-01-31-31,75LH 2046 BL 104631,754 x 630,005,0011,1056,302314008,78
Fl-01-32-31,75LH 2066 BL 106631,756 x 630,005,0011,1066,5040700010,52
Fl-01-33-31,75LH 2088 BL 108831,758 x 830,005,0011,1086,9045200013,99
Fl-01-34-38,10LH 2434 BL 123438,103 x 436,505,5012,7045,202268009,25
Fl-01-35-38,10LH 2446 BL 124638,104 x 636,505,5012,7062,5030240013,16
Fl-01-36-38,10LH 2466 BL 126638,106 x 636,505,5012,7073,2044400015,77
Fl-01-37-38,10LH 2488 BL 128838,108 x 836,505,5012,7095,6059500020,98
Fl-01-38-44,45LH 2834 BL 143444,453 x 442,006,5014,2853,2028690012,14
Fl-01-39-44,45LH 2846 BL 144644,454 x 642,006,5014,2873,1038260017,28
Fl-01-40-50,80LH 3234 BL 163450,803 x 447,007,0017,7557,8043360015,67
Fl-01-41-50,80LH 3244 BL 164450,804 x 447,007,0017,7564,9057820017,87
Fl-01-42-50,80LH 3246 BL 164650,804 x 647,007,0017,7579,1057820022,29
Fl-01-43-50,80LH 3266 BL 166650,806 x 647,007,0017,7593,3085800026,70
Fl-01-44-50,80LH 3288 BL 168850,808 x 847,007,0017,75121,70114700035,53
Fl-01-45-63,50LH 4023 BL 202363,502 x 360,0010,0023,8060,5043360019,80
Fl-01-46-63,50LH 4034 BL 203463,503 x 460,0010,0023,8081,1065050027,70
Fl-01-47-63,50LH 4044 BL 204463,504 x 460,0010,0023,8091,4086730031,60
Fl-01-48-63,50LH 4046 BL 204663,504 x 660,0010,0023,80112,0086730039,50
Fl-01-49-63,50LH 4066 BL 206663,506 x 660,0010,0023,80132,60130110047,40
